Carrier Infinity System Control in Alhambra, CA
Answer first: Alhambra Carrier HVAC installs, wires, and troubleshoots the Carrier Infinity System Control (SYSTXCCITC01) across Alhambra, CA, including Emery Park and ZIP 91801, where it unlocks Greenspeed variable-speed modulation and reads the 178/179 communication faults over ABCD wiring - so call (213) 799-8423 or book online. A control swap typically runs $300 to $900 installed.
Facts that matter
- Carrier Infinity control service across Alhambra (91801, 91803).
- Model: Infinity Touch SYSTXCCITC01 communicating touchscreen.
- Required to unlock Greenspeed variable-speed modulation.
- Communicates over four ABCD wires to indoor and outdoor boards.
- Reads numeric codes plus plain-language fault text.
- Comm faults: 178 indoor, 179 outdoor.
- 180/184/187/286/288 are model strings, not fault codes.
- Independent shop; in-warranty units referred to an authorized dealer.
Why does the Infinity control matter on a Carrier system?
The Infinity System Control is not just a fancy thermostat - it is the brain of a Greenspeed system. The variable-speed compressor in a 27VNA3 heat pump or 24VNA6 AC modulates roughly 25 to 100% of capacity, but only when the Infinity control is wired in to command it. Without that communicating control, the compressor falls back to single-speed operation and you lose the quiet, even comfort and high SEER2 you paid for. The control also runs the indoor blower staging, manages humidity, and stores a fault history. In a dense Alhambra home, that fine modulation matters: it lets a right-sized inverter system trickle along at low capacity through the long shoulder seasons instead of slamming on and off.
How do you troubleshoot Infinity communication faults?
The control communicates with the indoor and outdoor boards over four wires labeled A, B, C, and D. When that link breaks, the screen throws a 178 (indoor) or 179 (outdoor) communication fault and the system stops. We trace it methodically.
| Code / symptom | Likely cause / first check | Typical cost lane |
|---|---|---|
| 178 indoor comm fault | ABCD wiring or indoor board | $150 - $2,000 |
| 179 outdoor comm fault | Wet outdoor board or lost line voltage | $150 - $2,000 |
| Greenspeed runs single-speed | Missing/failed Infinity control | $300 - $900 (control) |
| Blank or frozen screen | 24V power, transformer, or control fault | $150 - $600 |
A common online mix-up: "180/184/187/286/288" are Carrier outdoor model/series strings, not fault codes. The only communication codes are 178 and 179.
What does wiring an Infinity control take in an Alhambra home?
The local wrinkle is the wiring run itself. The Infinity control needs four conductors - A, B, C, and D - running from the thermostat location to the indoor board and out to the condenser. Many 1920s Alhambra homes were wired for a simple two- or four-wire thermostat, often in fragile cloth-insulated cable buried in plaster, so a Greenspeed upgrade frequently means pulling new thermostat wire through a wall that does not want to be opened. We plan that run at the estimate. Outdoors, the ABCD terminals at the condenser are a known water-intrusion point after the SGV's brief but heavy winter rains, so we seal the conduit entry properly - a sloppy seal is the most common cause of a 179 fault months later. On a multi-zone setup the control also wires to zone dampers, which adds low-voltage runs to each zone board.
Infinity control vs a basic thermostat - what is the real difference?
The honest comparison: a basic Cor or Performance Edge thermostat is cheaper, simpler, and perfectly correct on a single-stage Comfort system - there is nothing to gain by putting a communicating control on a 26SCA5. The Infinity control only matters on a Greenspeed inverter system, where it is not optional: without it the variable-speed compressor cannot modulate and reverts to on-off operation, throwing away the efficiency and the quiet you paid a premium for. The tradeoff is that the Infinity control is a more complex, costlier part with its own failure modes and a four-wire run, and it ties you to the Carrier communicating ecosystem. So the rule is simple: match the control to the equipment - communicating control for a communicating system, basic thermostat for a single-stage one. We never upsell a touchscreen a single-stage unit cannot use.
Do I need to upgrade to an Infinity control?
Only if you have or are buying a Greenspeed variable-speed system. A single-stage Comfort 16 condenser runs fine on a simpler Cor or Performance Edge thermostat. But if you are installing a 27VNA or 24VNA unit, skipping the Infinity control is the most common way homeowners accidentally cripple an expensive upgrade. We check what your equipment actually requires before recommending a control - no upselling a touchscreen a single-stage unit cannot use. See the heat pump lineup for which models need it, and the fault-code page for what it displays.
One last decision point: if you are replacing a dead Infinity control on an existing Greenspeed system, you generally replace it with another Infinity control rather than downgrade, because the variable-speed equipment depends on it. If you are replacing a basic thermostat on a single-stage system, stay basic and save the money. Match the control to the equipment, every time.
Common questions
What does the Carrier Infinity control actually do?

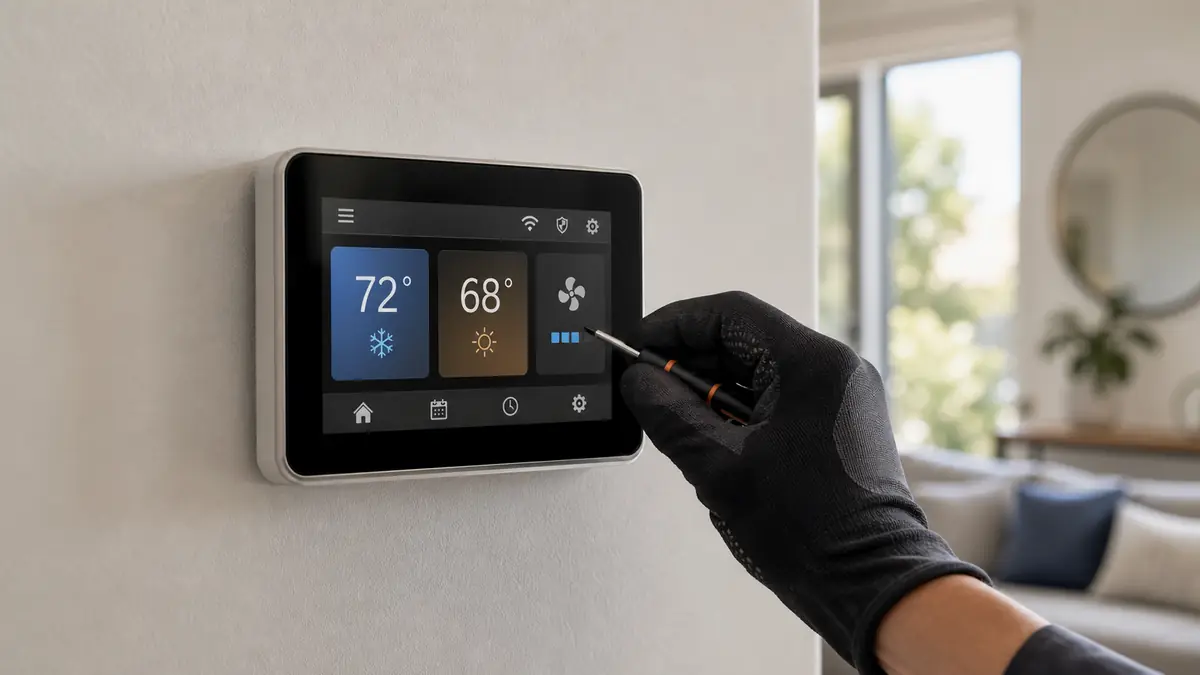

The Infinity System Control (model SYSTXCCITC01) is a communicating color touchscreen that talks to the outdoor unit and indoor board over four ABCD wires. It unlocks the Greenspeed variable-speed modulation, manages staging and humidity, and displays both the numeric fault code and a plain-language description, which makes diagnosis far faster than a basic thermostat.
Can I replace my Infinity control with a regular thermostat?
On a single-stage Comfort system, yes - but on a Greenspeed Infinity heat pump or AC you should not. The variable-speed compressor needs the Infinity control to modulate; swap in a basic two-wire thermostat and the unit reverts to on-off operation, wasting the efficiency. We can diagnose whether your system truly needs the communicating control.
What causes a 178 or 179 fault on the Infinity screen?
Code 178 is an indoor-unit communication fault (thermostat to indoor board); 179 is an outdoor-unit communication fault. Both usually trace to damaged or loose ABCD wiring, a water-damaged control board, or lost line voltage to the outdoor unit. After the SGV's brief heavy winter rains, water intrusion at the outdoor terminals is a common Alhambra cause.
Will the Infinity control work with my Wi-Fi and phone?
Yes. The Infinity Touch connects to home Wi-Fi for remote control and alerts. That said, the codes 180, 184, 187, 286, and 288 some homeowners see online are outdoor model and series strings, not fault codes - the real communication faults are only 178 and 179. We clear up that confusion on the diagnostic.
My Infinity screen is blank - is the control dead?
Not necessarily. A blank or frozen Infinity touchscreen usually traces to lost 24V power - a tripped float switch in the cooling season, a blown control fuse (furnace code 24), or a failed transformer - before the control itself. We check the power supply and the C-wire connection first, since a true control-board failure is the less common cause and the more expensive one to assume.
